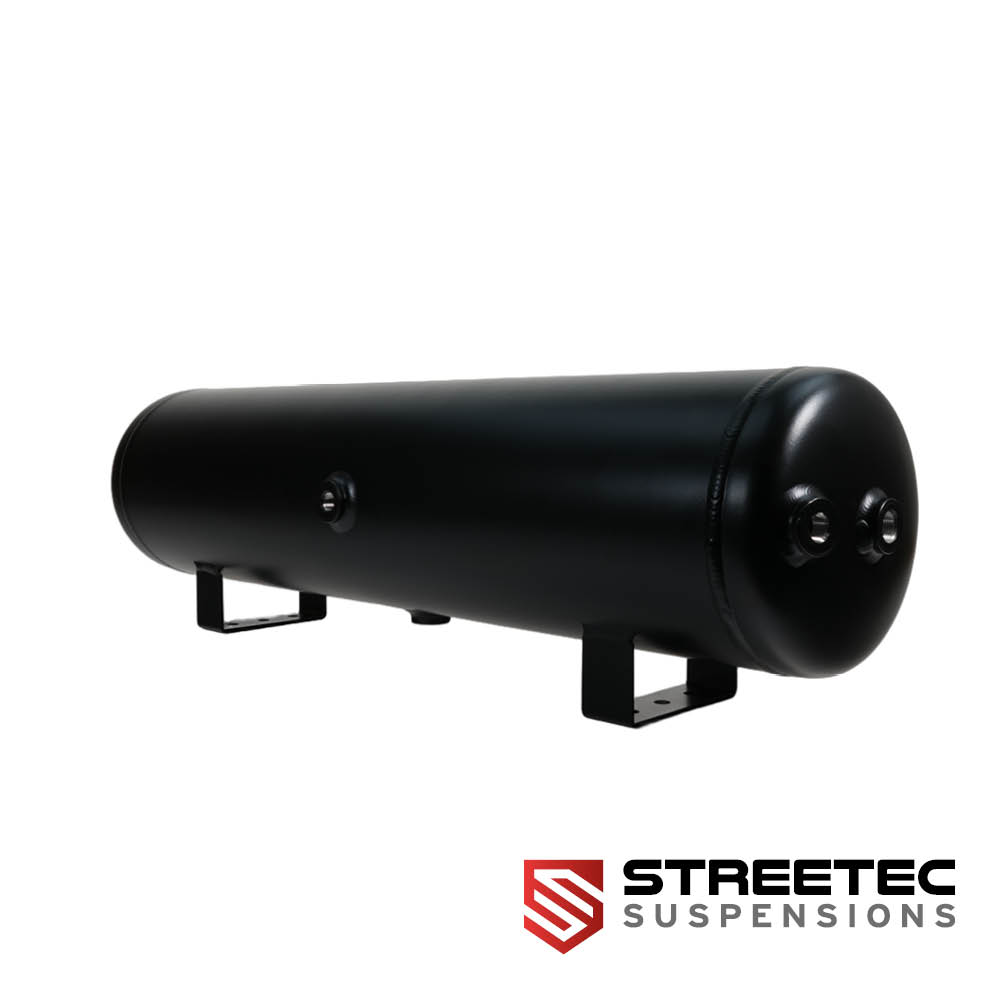

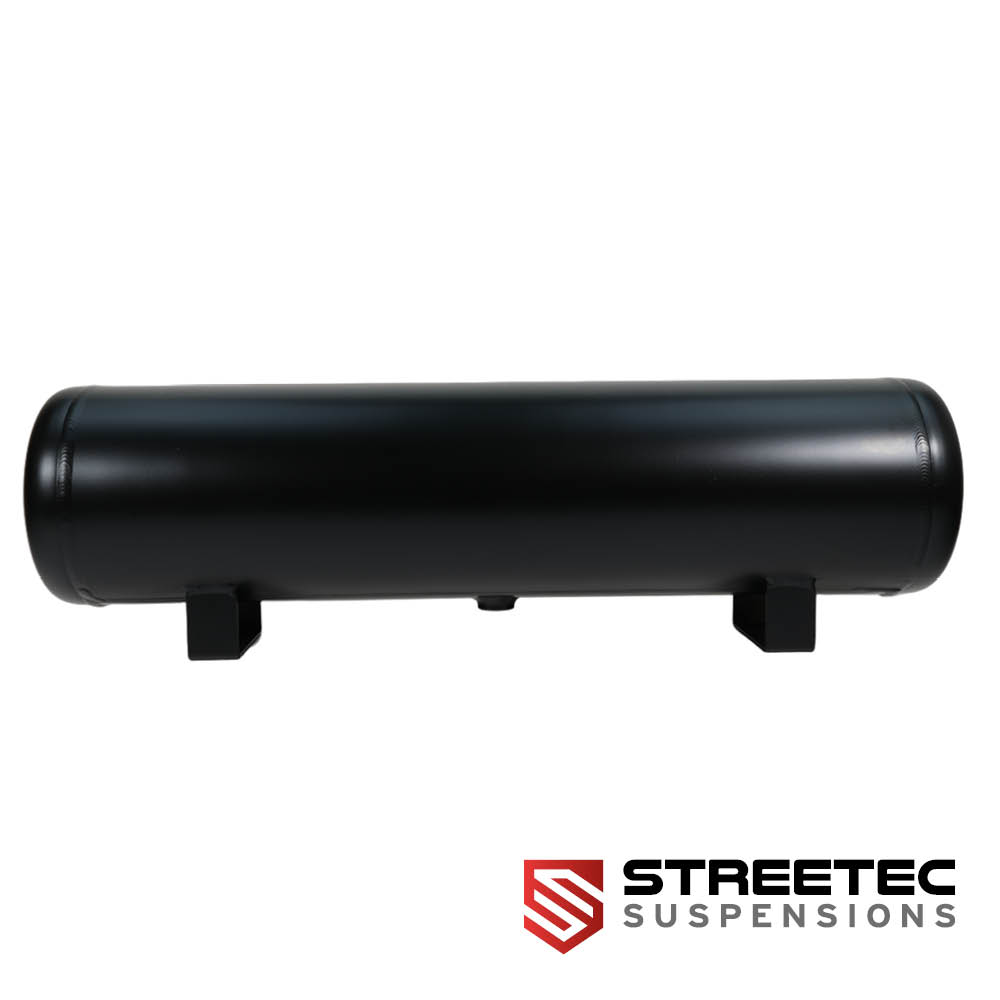

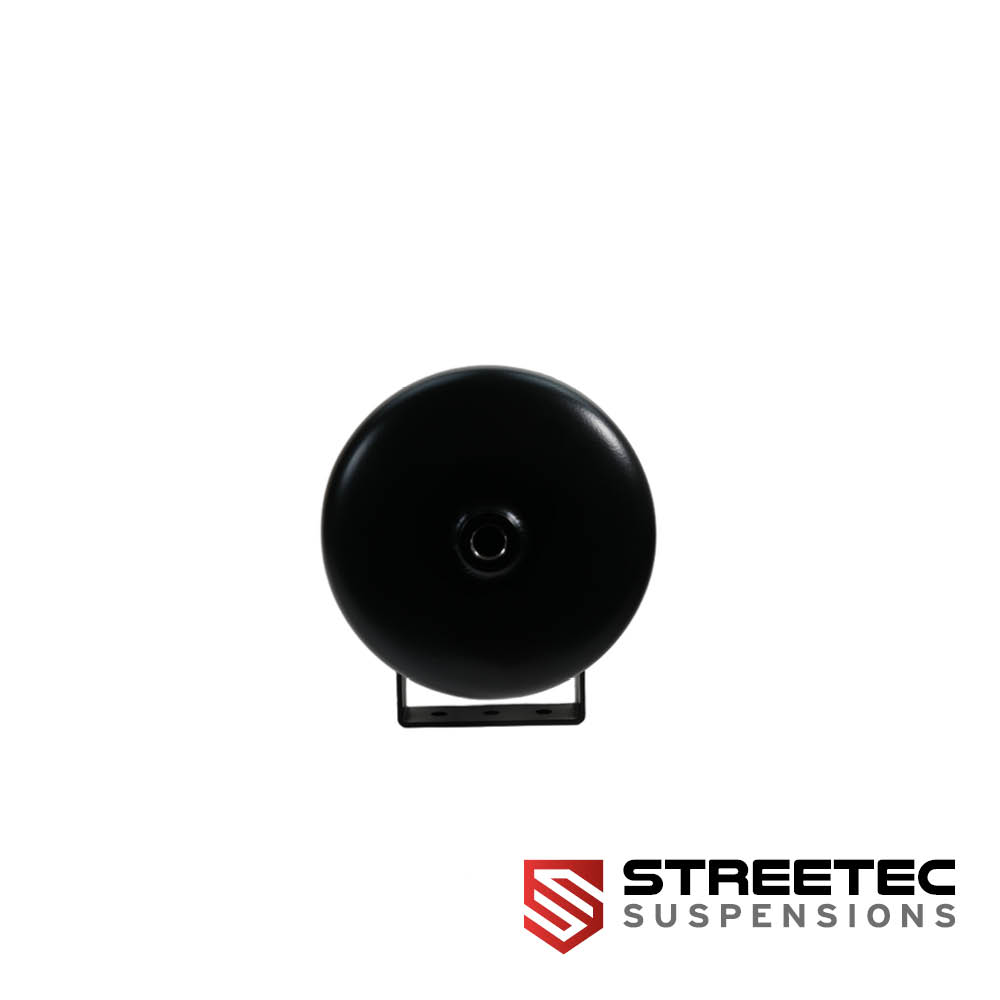

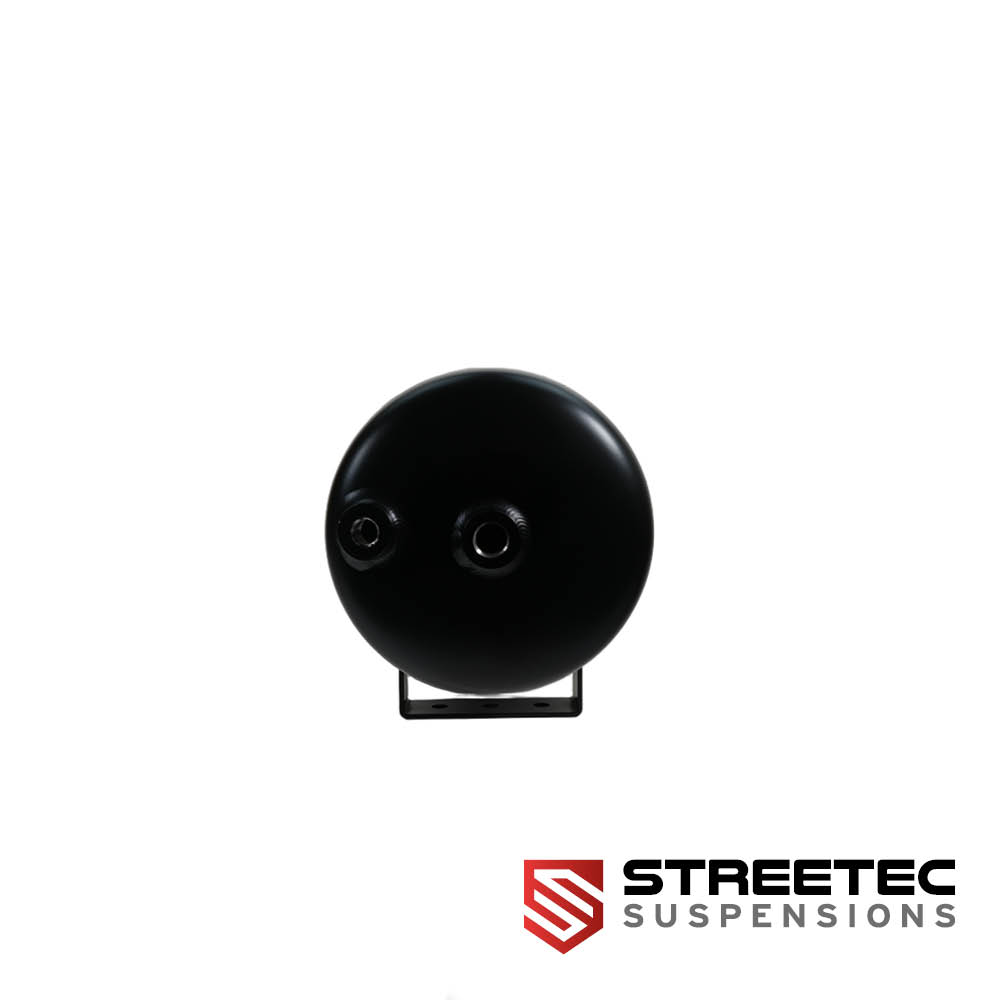

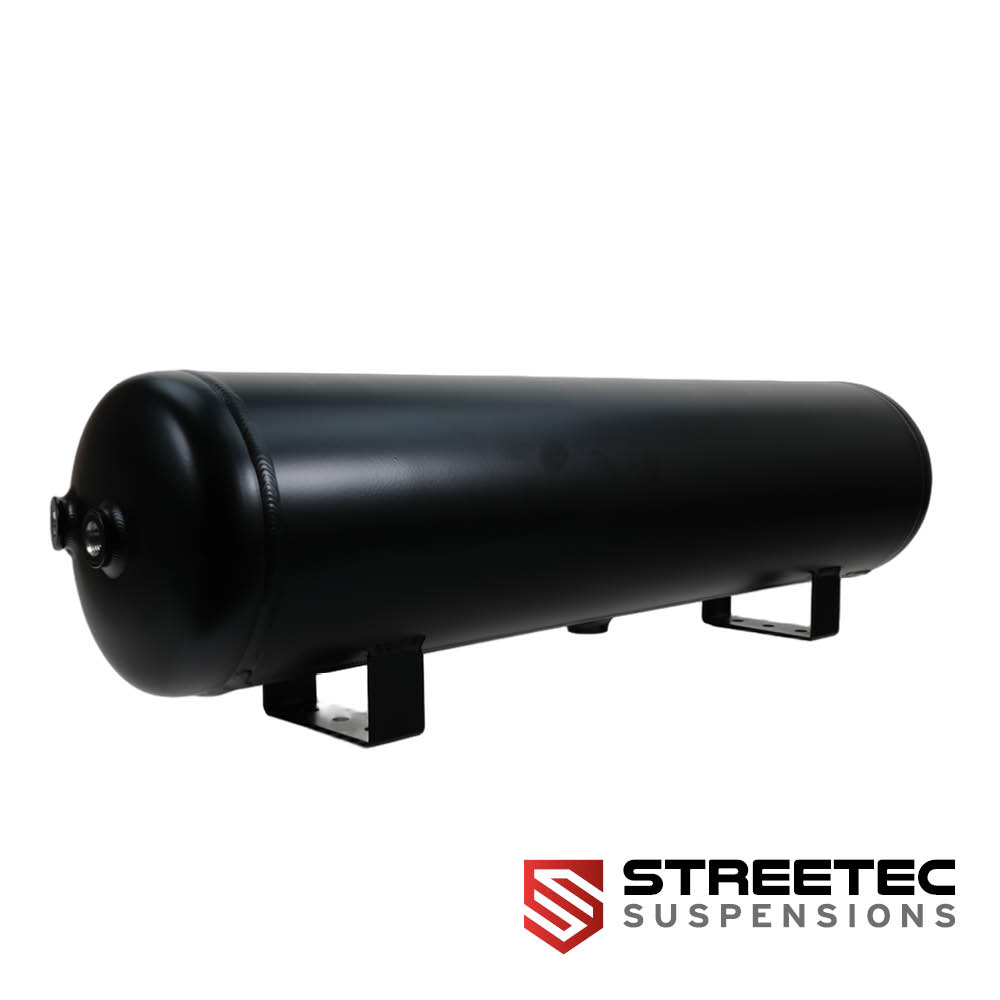

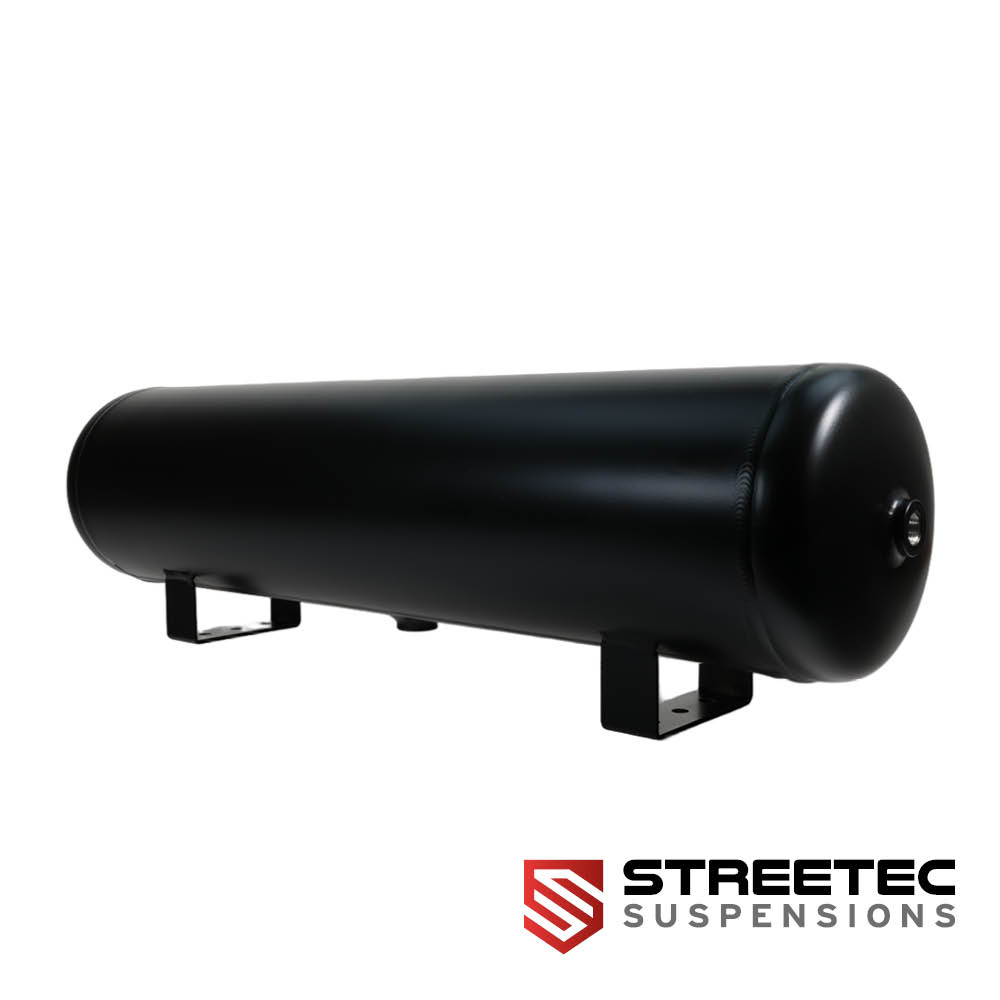

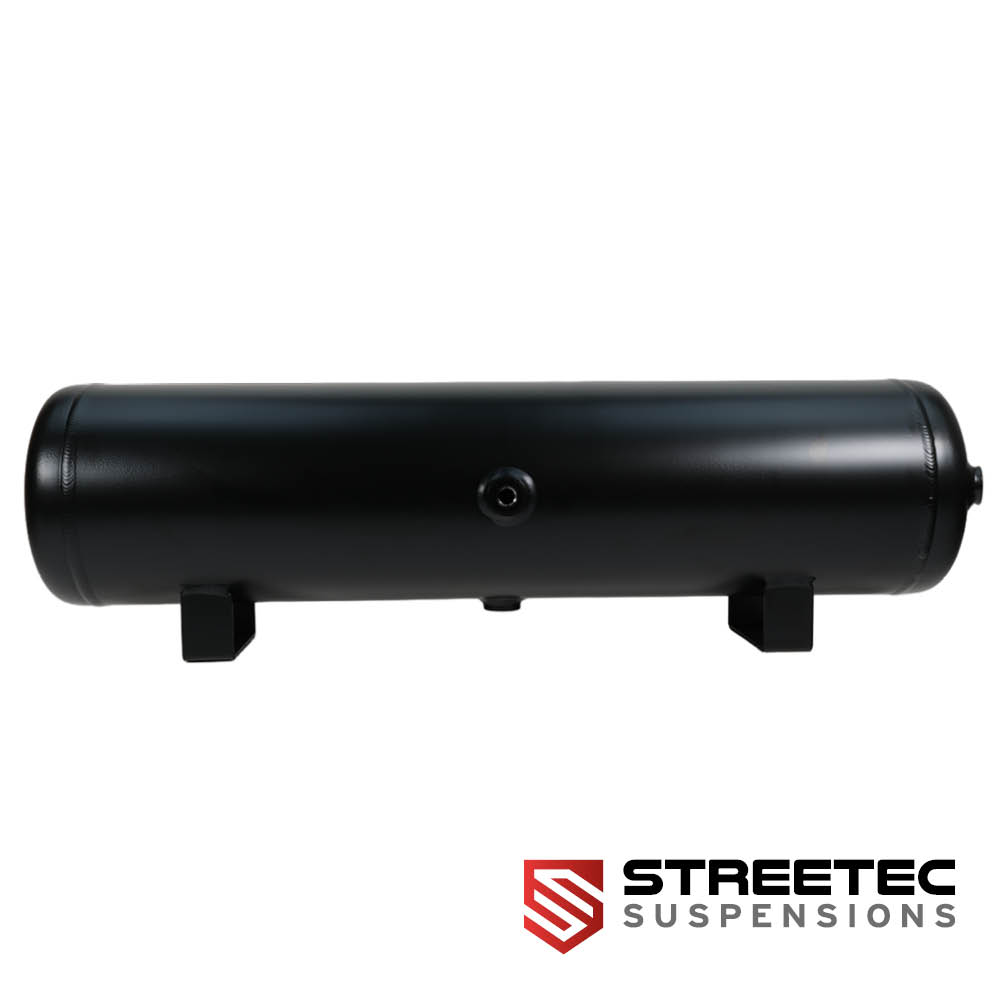

The STREETEC tank2 EVO is a precision-manufactured aluminium compressed air tank with 15.28 litres capacity, developed for high-performance air suspension systems that require a reliable and consistent air reserve. Manufactured from high-grade aluminium alloy EN AW-5052, it offers an excellent balance of weight, structural integrity, and corrosion resistance.
Uncompromising Quality
The precision-welded construction ensures permanently reliable sealing and pressure resistance up to 14 bar working pressure. The EN AW-5052 alloy combines low weight with high mechanical load capacity and excellent corrosion resistance – even under demanding operating conditions.
Practical Design
Well-considered port positions with multiple G 1/4" and G 3/8" ports simplify integration into a wide variety of air ride and air management layouts. The tank is approved for ambient temperatures from –40 °C to +100 °C and complies with the standard EN 286-2:1992.
Advantages of the STREETEC tank2 EVO
High Capacity
15 litres of air reserve – ideal for rapid pressure changes and large systems.
Robust Design
Welded construction from EN AW-5052 aluminium for maximum durability under continuous use.
Flexible Integration
Multiple threaded ports allow straightforward adaptation to any setup.
- Volume15.28 litres
- MaterialAluminium EN AW-5052
- Max. Working Pressure14 bar
- Temperature Range–40 °C … +100 °C
- Ports3 × G 1/4", 2 × G 3/8" (90° DIN 74 threaded)
- Dimensions (L × Ø × H)approx. 732 mm × 169 mm × 206 mm incl. brackets
- ApprovalEN 286-2:1992
- Finishes2 variants available
Technical Specifications
| Volume |
15.28 litres |
| Material |
Aluminium EN AW-5052 |
| Max. Working Pressure |
14 bar |
| Temperature Range |
–40 °C … +100 °C |
| Ports |
3 × G 1/4", 2 × G 3/8" (90° DIN 74 threaded) |
| Dimensions (L × Ø × H) |
approx. 732 mm × 169 mm × 206 mm incl. brackets |
| Approval |
EN 286-2:1992 |
Note: The tank2 EVO is available in two finishes. Please verify the desired variant before placing your order.
Tip: For optimum performance, operate the tank2 EVO in combination with STREETEC compressors from the comp2 series for rapid refilling.
